Locking Systems

Locking Systems

Aluminium Hasp & Clasp
  • High Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Padlock

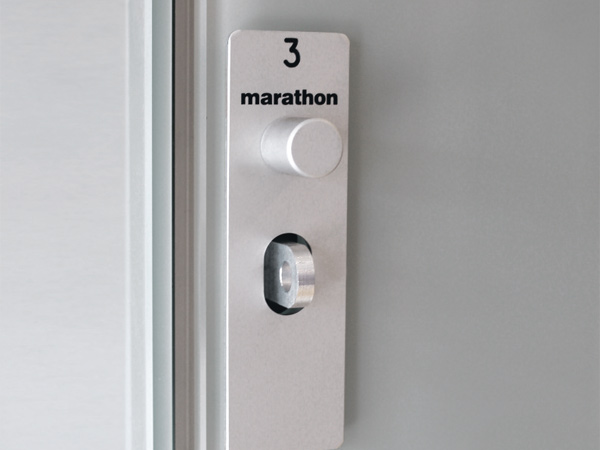

Aluminium Hasp & Clasp

Aluminium Hasp and Clasp from machined aluminium engaged into grooves in the doorframe profile, clasp is formed by machined hole in the door and aluminium numberplate attached to the door by 316 grade stainless steel through fixing into satin anodised aluminium doorknob.

Padlock can be supplied by Client or Prospec.


Hasp Camlock
  • High Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • High Risk High Use Wet Area
  • Padlock

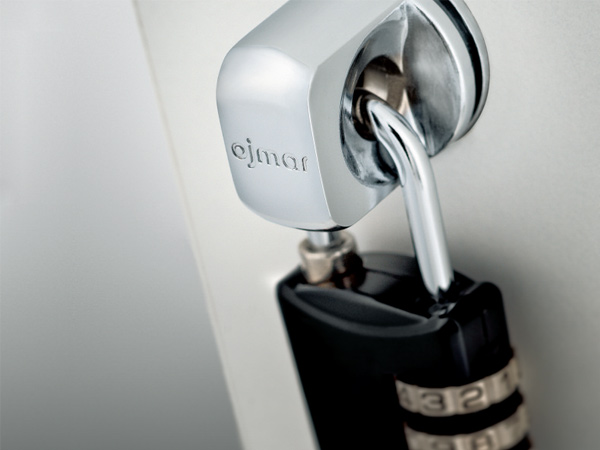

Hasp/Camlock

Body chrome plated steel. Anti-rotation device, aluminium numberplate attached to the door by 316 grade stainless steel through fixing into satin anodised aluminium doorknob.

Padlock can be supplied by Client or Prospec.


Dry Area Camlock
  • Medium Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Key

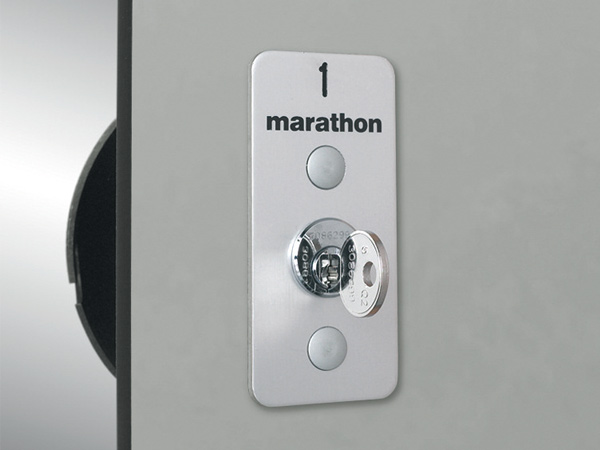

Dry Area Camlock

Standard Camlock, nickel plated with 10 wafer cylinder, reversible toothed key, master key series with 4000 differs. Attached to the door on aluminium back plate using through fixings.

Supplied with 1No user key per lock and 2No master keys per installation.


Wet Area Camlock
  • Medium Level
  • Medium Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Wet Area
  • Key

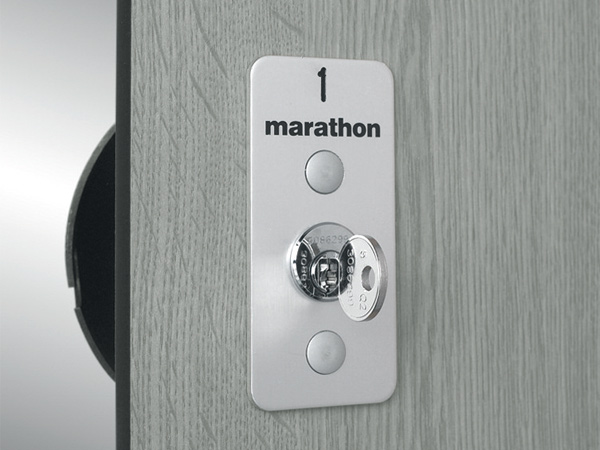

Wet Area Camlock

Standard Camlock from solid brass, nickel-plated cam lock with 6-pin cylinder, drilled security key, master key series with 1600 differs. Attached to the door on aluminium number / backplate by 316 grade stainless steel through fixings.

Supplied with 1no user key per lock and 2no master keys per installation.


Prospec Mechanical Code Lock
  • Medium Level
  • Average Expenditure
  • Health Fitness & Private Use
  • Educational Use
  • Combination

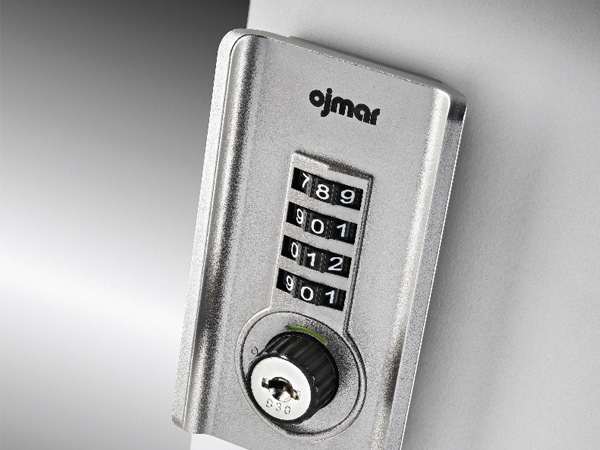

Prospec Mechanical Code Lock

Combination lock for lockers equipped with 4 dials that allows the choice of a 4-digit numerical code by the user. Fixed combinations or reset use. Attached to the door on a backplate using through fixings.


Prospec OTS Systems
  • Medium To High Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Electronic

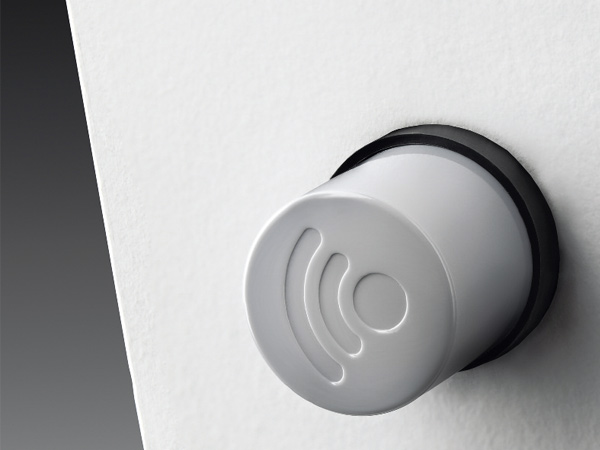

Prospec OTS

Transponder operated stand-alone lock, powered by 4 AA batteries with 30,000 cycle's battery life.

  • Resistance to Humidity IP55
  • Compatible with Technogym wellness system, other wellness cashless purchasing & access control systems
  • 2 level master key system
  • Operates on Mifare 1k & 4K technology
  • Lock, strap & card programmer

Accessories

  • Infoterminal - Showing locker number or individual straps and cards
  • Strap Return Unit

Prospec OTS Advanced
  • Average Level
  • Premium Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Electronic

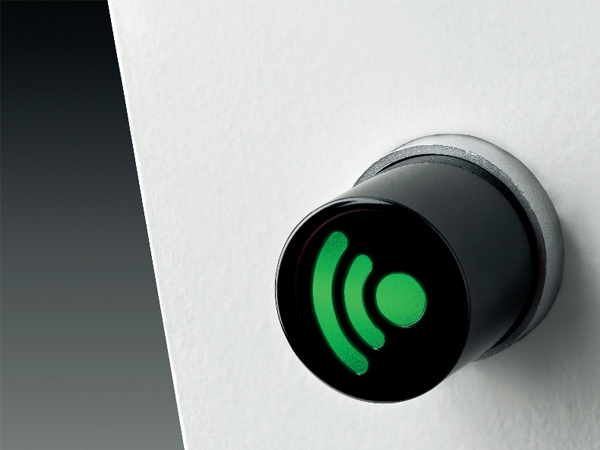

Prospec OTS Advanced

Transponder operated stand-alone locks, powered by 4 AA batteries with 30,000 cycle's battery life.

  • Resistance to Humidity IP55
  • Compatible with Technogym wellness system, other wellness cashless purchasing & access control systems
  • 2 level master key system
  • Operates on all Mifare technology
  • Real time functionality
  • Option of dedicated user use
  • Auto opening function
  • Events log
  • LED indicated lock status
  • PC Software

Accessories

  • Infoterminal - Showing locker number or individual straps and cards
  • Strap Return Unit
  • NFC Programmer

Prospec OCS
  • Average Level
  • High Expenditure
  • Health Fitness & Private Use
  • Public Sports Facilities
  • Educational Use
  • High Risk High Use Wet Area
  • Electronic
  • Combination

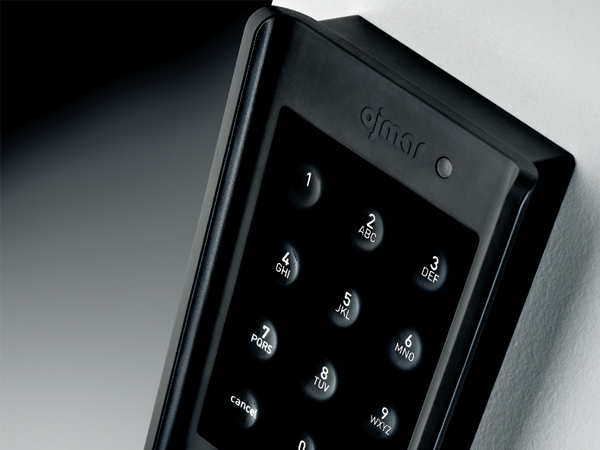

Prospec OCS

Battery operated standalone electronic digital lock with 4-digit user selected code input, master key, management key and disabled user key option.

LED indicators for lock/unlock and low battery warning, 4 AA size batteries, 10,000 cycles, deadbolt locking for security, fixed through the door with steel screws.

  • Can be assigned for private clubs or shared use for public buildings
  • Keypad

Options:

  • Separate numberplate
  • Engraved numerals on laminate doors

Lock Descriptions

Risk Levels

  1. Low Level. Low resistance to attempted break-in with basic equipment. Not suitable for public facilities. Any lock system fixed direct to the back of locker doors is in this category. The resistance being reliant on the pull out strength of the screws
  2. Medium Level. Has some resistance to attacks from casual thieves. Only suitable for installations with constant staff supervision
  3. Medium to High Level. Resistant to attacks from experienced thieves. Suitable for use in both private and public facilities with reasonable levels of supervision
  4. High Level. Specification including addition of continuous angle guards and anti-tamper fixing screws. Resistant to determined attacks from experienced thieves with specialist equipment. Suitable for installations with limited staff supervision and or lockers in remote locations. Highly recommended when the facility has a previous history of theft.

Prospec can provide the highest level of security available in the industry. It should be noted that the items supplied are storage lockers, not safes and as such there can be no absolute guarantee of resistance to determined thieves who are becoming increasingly ingenious which is symptomatic of today's society.
